Cellardyke Harbour (Skinfast Haven)

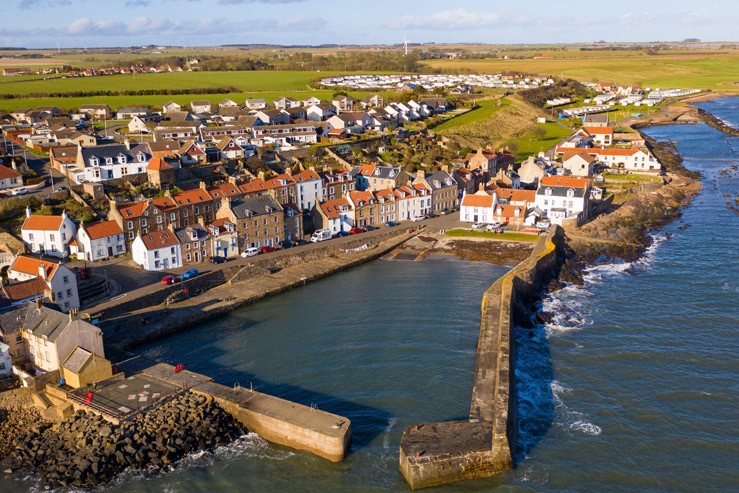

The image shows an aerial view of Cellardyke. The harbour is surrounded by stone walls extending into the sea, creating a sheltered area for boats. The village consists of numerous houses with red-tiled roofs and white walls, situated close to the coastline. There are green fields in the background and rocky shores along the water's edge.
Lead Harbour Master:Allan Anderson (Part Time)
Harbour Master:
Website:www.fife.gov.uk
Email:Harbours@Fife.gov.uk
Telephone:03451 555555 Ext 461541
Out of Hours:03451 55 00 99
Address:Harbour Office, Mid Shore, St Monans, KY10 2BA

Description

The harbour consists of a single basin formed by two piers.

Location

Northern shore of the Firth of Forth

Imray chart No

C27

Limits

The harbour limits, are outlined in the Schedule to the Fife Council Harbours Byelaws 1996, broadly extend as follows:

  • Approximately 275m to the south of the Pier Head, east of the eastern extent of the harbour
  • Approximately 100m west of the western extent of the harbour.

Approach

The harbour is limited to a narrow zone from the south south east to the south south west due to the presence of rocks to the east and west of the harbour entrance.  There are no navigation marks on the piers.

Usage

Fishing vessels.  Recreational vessels

Latitude (Entrance)

56.225167N

Longitude (Entrance)

2.683508W

Grid Reference

357717,703833

Tidal Range

0.1 to 5.9 m

(Chart Datum)

Neap Tide

2.2 m

Spring Tide

4.5 m

Navigational Access

No

Tide Gauge

No

Berths

12 Moorings

Tugs

No

Anchorage

No

Pilotage

No

Cargo Handling

No

Repair facilities

No

ISPS Compliant

N/A

Maximum Draft

2 m

Maximum Length

10 m

Maximum Beam

5 m

Control Depths/Drafts

Location

Bed Material

Bed Level

Keel Clearance

Note

Entrance Channel

Sand / Silt

Unknown

Min 1 m

Storm Fluctuations

Basin

Sand / Silt
Rock Patches

Unknown

N/A

Storm Fluctuations

Communication

VHF

Calling and
Distress/Safety

16

Harbour Operations

11

Operating Constraints

In high winds and/or large easterly swells, the approach to the entrance channel can be very difficult, and the Harbour Masters advice must be sought prior to arrival or departure

When visibility is severely restricted, vessels should consider whether it’s safe to approach/leave the harbour based on the equipment they have on their vessel and the local knowledge of the skipper.

The approach to the harbour entrance is very shallow and dries out at low spring tides, and there are rocks to the east and west of the narrow entrance channel

The entrance into the harbour is around 6m in width

The basin dries out completely at low spring tides right up to the harbour mouth, and the bed is generally sandy but with some rocky patches and the advice of the Harbour Master is required before berthing

Aids to Navigation

None

Oil Pollution Hazard

Responsibility

Control

General Oil Spillage

Fife Council

Provision of signage stating the organisations to be contacted in the event of an oil spillage when the Harbour Master is not on duty – maximum response time 90 minutes

Competent trained operatives, including accredited to MCA1 and or MCA4 Oil spill response

Provision and storage of Tier 1 oil pollution clean-up and containment materials



Equipment

Number



3m x 13cm Spaghetti Water Boom

6



50cm x 40cm Absorbent Pads

20



Protective Chemical Suit

1

Provision for Tier 2 Specialist Contractor

Oil Pollution Action

Contact Fife Council immediately

Fife Council will implement the Oil Pollution Response Procedure to effectively manage and mitigate the impact of oil pollution incidents.
